Product code: 16-10
[ Print version ] [ Return ]

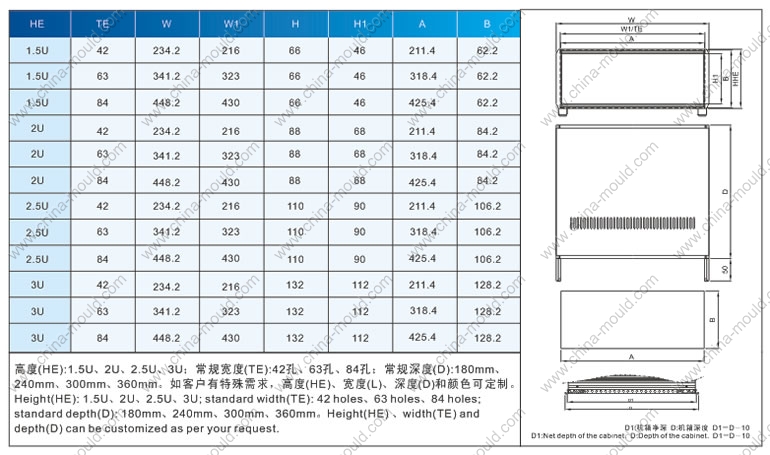

  • Size:
  • ProtectionClass: no
  • Battery: no
  • Windows: no
  • PDF Drawings:  Download
    		•
    Note:
  		• Material and color can be customized.
  		• For modification, there will be surcharge.
  		• Drawings from website is just for reference.
  		• Certificates for waterproof and ex-proof are not available.
  		• Making toolings cooperative, 50% tooling cost will be undertaken.
    more pictures...
    Assembly Parts List
    Serial No.
    Part No.
    Part Name
    Qty
    Material
    Surface Finish
    Remarks
    1 16-10-1 Top Cover 1 Iron Powder Coating
    2 16-10-2 Bottom Board 1 Iron Powder Coating

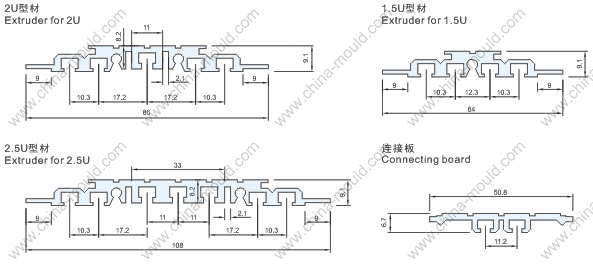

    3  16-10-3 AL Extruder  2  AL Powder Coating
    4  16-10-4  Handle Bar  4 AL Powder Coating
    5 16-10-5   Crossbeam  4 AL Powder Coating
    6  16-10-6  Handle  2 AL Powder Coating
    7  16-10-7 Accessories   1  ABS Texture Finish
    8  16-10-8  Rubber Stopper  4 Rubber  Texture Finish
    9    M4x12 Internal Angle Screw  4  Steel
    10   M4x14 Flat Head Screw   4  Steel
    11   M4x10 Sunk Screw   4  Steel
    12    M4x10 Flat Head Screw 8  Steel
    13    Plastic Foot 4   ABS Texture Finish
    14
    Optional Parts
    Serial No.
    Part No.
    Part Name
    Qty
    		 Material
    Surface Finish
    Remarks
    1
    2

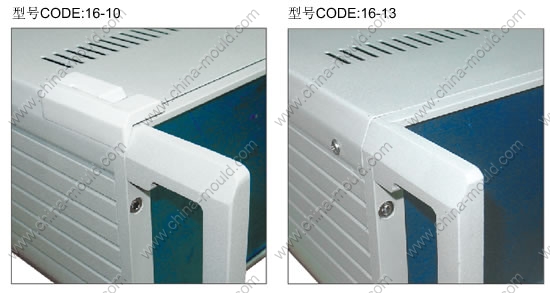

    This product has the following changes:
    Code: 16-13
