Plastic Enclosure
/
Non-standard Meter Enclosure

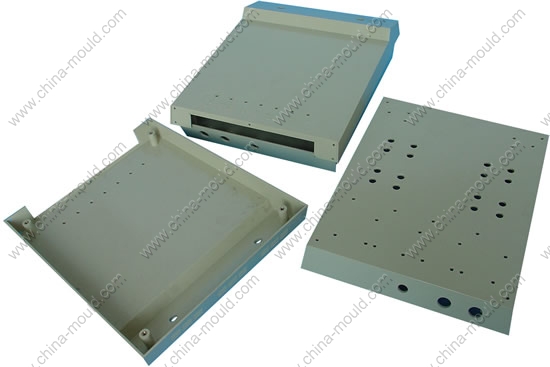

Product code: 28-8
[ Print version ]
[ Return ]
Old code: 13-1
Size: 270x220x70 mm
ProtectionClass: no
Battery: no
Windows: no
PDF Drawings:
Download
Note:
Material and color can be customized.
For modification, there will be surcharge.
Drawings from website is just for reference.
Certificates for waterproof and ex-proof are not available.
Making toolings cooperative, 50% tooling cost will be undertaken.
more pictures...
Assembly Parts List
Serial No.
Part No.
Part Name
Qty
Material
Surface Finish
Remarks
1
13-1
Big Cover
1
ABS
Mill Finish
4pcs of Insert M3x6
2
13-2
Base
1
ABS
Mill Finish
4pcs of Insert M3x6
3
13-5
Transformer Press Bar
2
ABS
Mill Finish
4
Optional Parts
Serial No.
Part No.
Part Name
Qty
Material
Surface Finish
Remarks
1
2
