Plastic Enclosure
/
Wall-mounting Enclosure

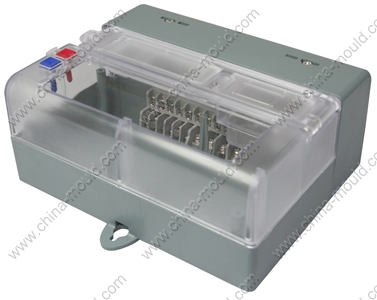

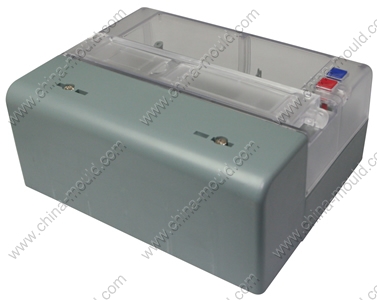

Product code: 19-56
[ Print version ]
[ Return ]
Size: 220x176x91 mm
ProtectionClass: IP54
Battery: no
Windows: no
PDF Drawings:
Download
Note:
Material and color can be customized.
For modification, there will be surcharge.
Drawings from website is just for reference.
Certificates for waterproof and ex-proof are not available.
Making toolings cooperative, 50% tooling cost will be undertaken.
more pictures...

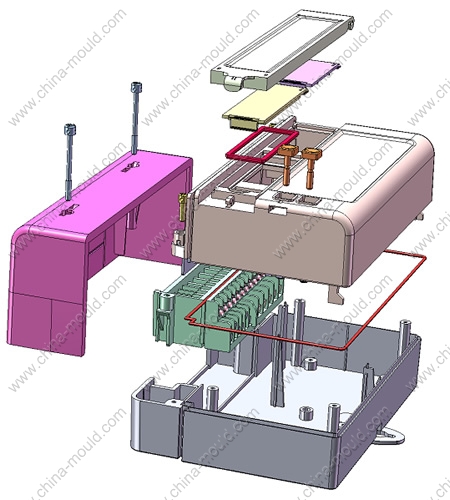

Standard accessories
No.
Part No.
Part Name
Qty
Material
Note
1
19-56-1
1
PC
2
19-56-2
1
PC
3
19-56-3
1
PC
4
19-56-4
1
PC
5
19-56-5
1
PC
6
19-56-6
1
PC
7
19-56-7
1
Silica gel
8
19-56-8
2
ABS
9
19-56-9
1
PPO+GF
10
19-56-10
6
Brass
11
19-56-11
6
Brass
12
19-56-12
13
Brass
13
19-56-13
1
Iron
14
19-56-14
1
PC
15
19-56-15
4
PC
16
19-56-16
1
ABS
17
19-56-17
2
Iron
18
19-56-18
2
Iron
19
19-56-19
1
Silica gel
20
