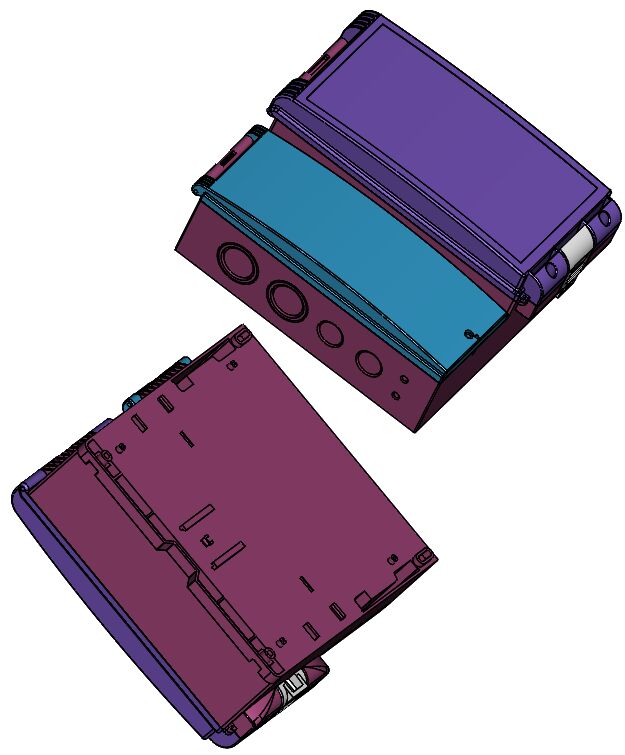

Product code: 11-196A
[ Print version ]
[ Return ]
Size: 247x244x114 mm
ProtectionClass: IP65
Battery: no
Windows: no
PDF Drawings:
Download
Note:
Material and color can be customized.
For modification, there will be surcharge.
Drawings from website is just for reference.
Certificates for waterproof and ex-proof are not available.
Making toolings cooperative, 50% tooling cost will be undertaken.
more pictures...

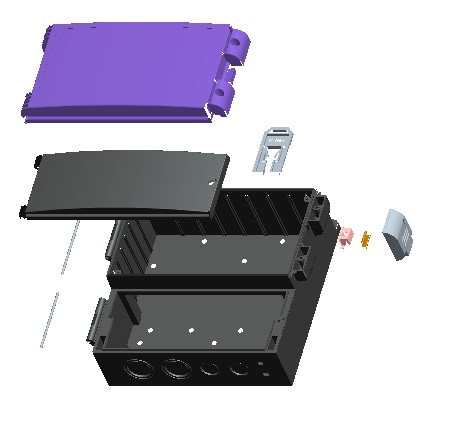

Standard accessories
No.
Part No.
Part Name
Qty
Material
Note
1
11-196-1T
1
PC
2
11-196A-2
1
PC+GF
3
11-196A-1
1
PC+GF
4
11-193-4
1
PC+GF
5
11-193-5
1
Nylon6
6
11-193-6
1
ABS
7
11-100-4
1
POM
8
11-103-7
1
Iron
9
xiao3x58
1
Stainless Steel
10
MFT3
2
Foam
11
PT4x16
3
Iron
12
