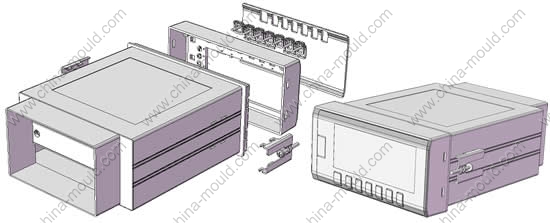

Digital Panel Meter Enclosure
/
72x144
Product code: 7101B
[ Print version ]
[ Return ]
Size: 72x144x200 mm
ProtectionClass: no
Battery: no
Windows: no
PDF Drawings:
Download
Note:
Material and color can be customized.
For modification, there will be surcharge.
Drawings from website is just for reference.
Certificates for waterproof and ex-proof are not available.
Making toolings cooperative, 50% tooling cost will be undertaken.
more pictures...
Standard accessories
No.
Part No.
Part Name
Qty
Material
Note
1
7101-1
1
ABS
2
7101-2
1
ABS
3
7101-3
1
PC
4
7101-5
1
ABS
5
7101-7
1
PC
6
7101-9
1
ABS
7
0001-11
2
Iron
8
This product has the following changes:
Code:
7101A
[ Print version ]
[ Return ]
Similar products:
more...
Code:
7101A
Size: 72x144x200 mm
Code:
1472-1
Size: 144x72x79 mm
Code:
1472
Size: 144x72x175 mm
