Product code: 17-51

[ Print version ]

Size: 210x69 mm

ProtectionClass: no

Battery: no

Windows: no

PDF Drawings:


Note:
	Material and color can be customized.
	For modification, there will be surcharge.
	Drawings from website is just for reference.
	Certificates for waterproof and ex-proof are not available.
	Making toolings cooperative, 50% tooling cost will be undertaken.

more pictures...

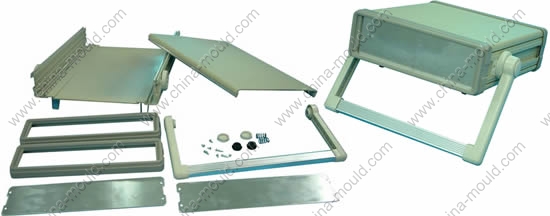

Assembly Parts List
Serial No.	Part No.	Part Name	Qty	Material	Surface Finish	Remarks
1	205A-01	Cover	1	Al	Powder Coating
2	205A-02	Bottom	1	Al	Powder Coating
3	205A-03	Front/Rear Panel	2	Al
4		Handle	1	Al	Powder Coating
5		Plastic Bezel	2	ABS	Texture Finish
6		Rubber Stopper	4	Rubber
7		M3*6.5 Self Tapping Screw	8	Steel
8		M3*8B Screw	4	Steel
9		Bracket	2	Steel Wire
10
Optional Parts
Serial No.	Part No.	Part Name	Qty	Material	Surface Finish	Remarks
1
2

This product has the following changes:

Code: 17-1

Code: 17-1B

Code: 19-1
