| Old code: 205B-2 |
| Size:
210x125x120 mm
|
| ProtectionClass:
no
|
| Battery:
no
|
| Windows:
no
|

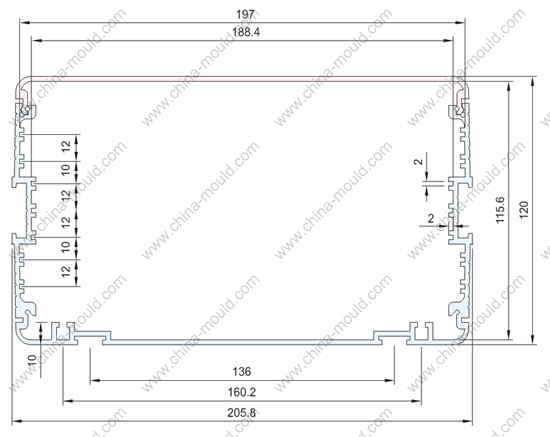

PDF Drawings:  Download |
|
|
|
|
| Note: |
|
Material and color can be customized. |
|
For modification, there will be surcharge. |
|
Drawings from website is just for reference. |
|
Certificates for waterproof and ex-proof are not available. |
|
Making toolings cooperative, 50% tooling cost will be undertaken. |
|
|
|
|
|
| more pictures... |
|
|
|
|
Assembly Parts List |
|
Serial No. |
Part No. |
Part Name |
Qty |
Material |
Surface Finish |
Remarks |
| 1 |
205A-01 |
Top Cover |
1 |
Aluminum |
Powder Coating |
|
| 2 |
205B-02 |
Base Part |
1 |
Aluminum |
Powder Coating |
|
| 3 |
D2 |
Front & Rear Plastic Bezel |
2 |
ABS |
Texture Finish |
|
| 4 |
205A-04 |
Bracket |
2 |
Iron |
Zinc Plated |
|
| 5 |
|
M3x6 Tap Screw |
8 |
Steel |
|
|
| 6 |
|
M5x6 Sunk Head Screw |
2 |
Steel |
|
|
| 7 |
205B-03 |
Front & Rear Al Panel |
2 |
Aluminum |
|
|
|
Optional Parts |
|
Serial No. |
|
|
|
Material |
|
Remarks |
| 1 |
|
|
|
|
|
|
| 2 |
|
|
|
|
|
| |
|
|
| |
|
