Plastic Enclosure
/
Desk-top Enclosure

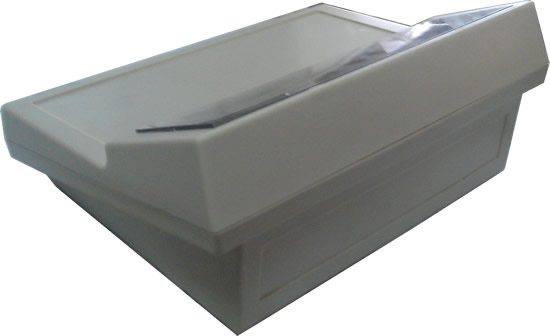

Product code: 18-50
[ Print version ]
[ Return ]
Size: 240x187x106 mm
ProtectionClass: no
Battery: no
Windows: no
PDF Drawings:
Download
Note:
Material and color can be customized.
For modification, there will be surcharge.
Drawings from website is just for reference.
Certificates for waterproof and ex-proof are not available.
Making toolings cooperative, 50% tooling cost will be undertaken.
more pictures...
Standard accessories
No.
Part No.
Part Name
Qty
Material
Note
1
18-50-1
1
ABS
2
18-12-2
1
ABS
3
1125-02
1
PC
4
M3x12
4
Iron
5
This product has the following changes:
Code:
18-12
[ Print version ]
[ Return ]
