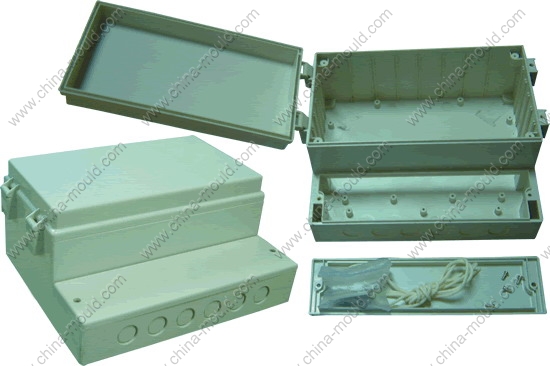

Product code: 11-24
[ Print version ]
[ Return ]
Size: 222x185x106 mm
ProtectionClass: IP65
Battery: no
Windows: no
PDF Drawings:
Download
Note:
Material and color can be customized.
For modification, there will be surcharge.
Drawings from website is just for reference.
Certificates for waterproof and ex-proof are not available.
Making toolings cooperative, 50% tooling cost will be undertaken.
more pictures...
Standard accessories
No.
Part No.
Part Name
Qty
Material
Note
1
11-24-1
1
ABS
2
11-24-2
1
ABS
3
11-24-3
1
ABS
4
11-23-4
2
Nylon6
5
11-23-5
2
ABS
6
11-39-1ZH3
1
PC+GF
7
M3x8
7
Iron
8
MFT3.5
2
Foam
9
This product has the following changes:
Code:
11-24T
[ Print version ]
[ Return ]
