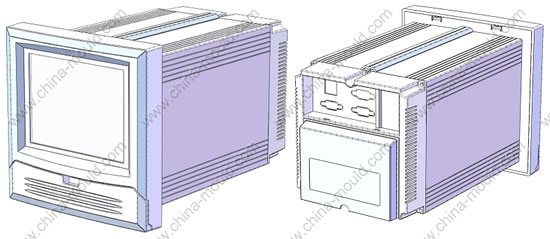

Digital Panel Meter Enclosure
/
160x160
Product code: 1655B
[ Print version ]
[ Return ]
Size: 180x180x281 mm
ProtectionClass: no
Battery: no
Windows: no
PDF Drawings:
Download
Note:
Material and color can be customized.
For modification, there will be surcharge.
Drawings from website is just for reference.
Certificates for waterproof and ex-proof are not available.
Making toolings cooperative, 50% tooling cost will be undertaken.
more pictures...
Standard accessories
No.
Part No.
Part Name
Qty
Material
Note
1
1655-1B
1
ABS
2
1655-2
1
ABS
3
1655-3
1
ABS
4
1655-4
1
ABS
5
1655-6
1
Iron
6
1655-7
1
Iron
7
1655-8
1
Iron
8
1655-9
1
Iron
9
1655-10
1
Iron
10
1655-11
1
PC
11
1616L
1
Aluminum
12
8016L-10
2
Aluminum
13
This product has the following changes:
Code:
1655A
[ Print version ]
[ Return ]
