Digital Panel Meter Enclosure
/
160x160
Product code: 1616L
[ Print version ]
[ Return ]
Size: 160x160 mm
ProtectionClass: no
Battery: no
Windows: no

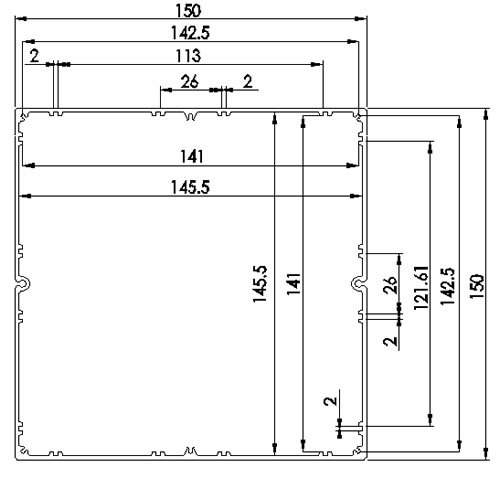

PDF Drawings:
Download
Note:
Material and color can be customized.
For modification, there will be surcharge.
Drawings from website is just for reference.
Certificates for waterproof and ex-proof are not available.
Making toolings cooperative, 50% tooling cost will be undertaken.
more pictures...
Standard accessories
No.
Part No.
Part Name
Qty
Material
Note
1
1616L
1
Aluminum
2
1616L-2
1
ABS
3
8016L-10
2
Aluminum
4
1616L-1
1
ABS
5
1616L-3
1
Aluminum
6
1616L-4
1
Aluminum
7
ST4x8
8
Iron
8
M4x16
2
Iron
9
