Digital Panel Meter Enclosure
/
144x144
Product code: 1457
[ Print version ]
[ Return ]
Size: 146x146 mm
ProtectionClass: no
Battery: no
Windows: no

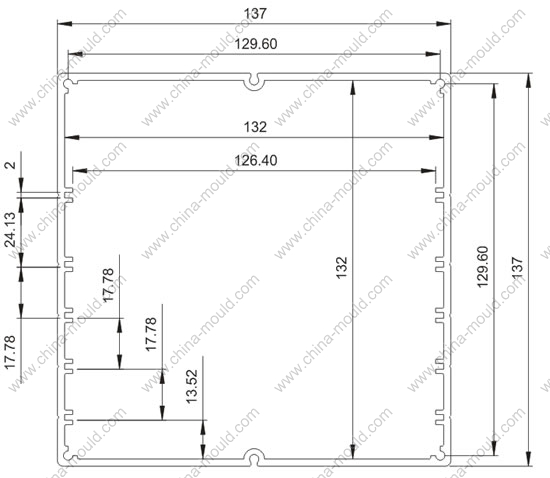

PDF Drawings:
Download
Note:
Material and color can be customized.
For modification, there will be surcharge.
Drawings from website is just for reference.
Certificates for waterproof and ex-proof are not available.
Making toolings cooperative, 50% tooling cost will be undertaken.

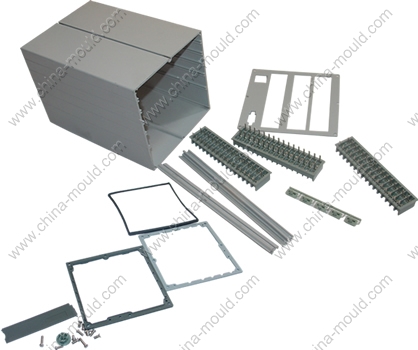

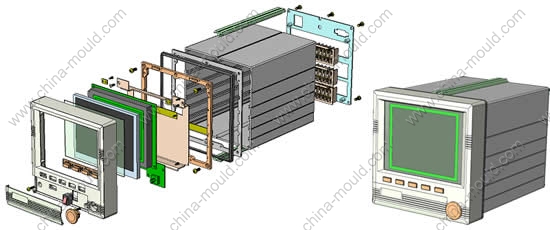

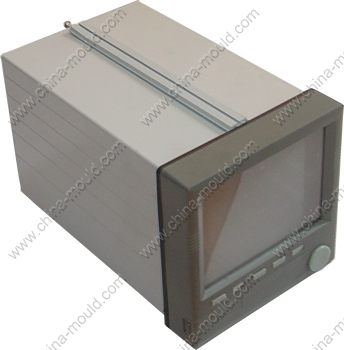

more pictures...
Standard accessories
No.
Part No.
Part Name
Qty
Material
Note
1
1457-1
1
ABS
2
1457-2
1
ABS
3
1457-3
1
ABS
4
1457-4
1
Iron
5
1457-5
1
Rubber
6
1457-6
1
Aluminum
7
1457-7
1
PC
8
1457-8
1
Iron
9
1457-9
3
ABS
10
1457-11
1
ABS
11
1457-12
1
ABS
12
1457-13
2
Iron
13
1457-15
1
Aluminum
14
1457-16
2
Iron
15
M3x10
2
Iron
16
M3x8C
3
Iron
17
M4x10
10
Iron
18
PT2.5x6
12
Iron
19
Optional accessories
No.
Part No.
Part Name
Qty
Material
Note
1
1457-14
2
Iron
2
