Digital Panel Meter Enclosure
/
144x144
Product code: 1455A
[ Print version ]
[ Return ]
Size: 144x144x64 mm
ProtectionClass: no
Battery: no
Windows: no
PDF Drawings:
Download
Note:
Material and color can be customized.
For modification, there will be surcharge.
Drawings from website is just for reference.
Certificates for waterproof and ex-proof are not available.
Making toolings cooperative, 50% tooling cost will be undertaken.
more pictures...

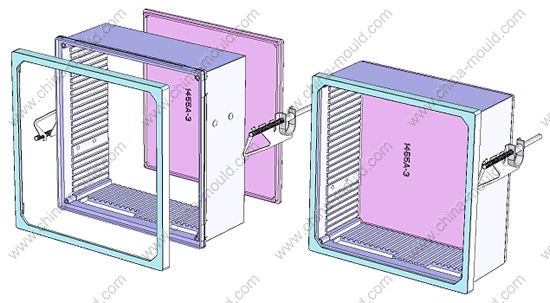

Standard accessories
No.
Part No.
Part Name
Qty
Material
Note
1
1455-1
1
ABS
2
1455-2A
1
ABS
3
1455-3A
1
ABS
4
0001-8
2
Iron
5
M2x8C
4
Iron
6
This product has the following changes:
Code:
1455
