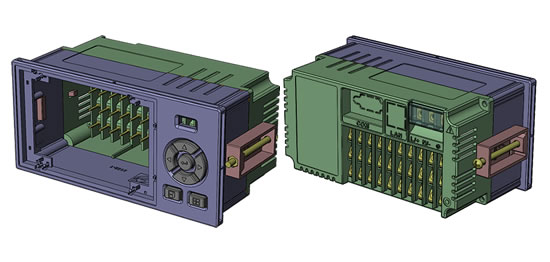

Digital Panel Meter Enclosure
/
80x160
Product code: 8182
[ Print version ]
[ Return ]
Size: 80x160x82 mm
ProtectionClass: no
Battery: no
Windows: no
PDF Drawings:
Download
Note:
Material and color can be customized.
For modification, there will be surcharge.
Drawings from website is just for reference.
Certificates for waterproof and ex-proof are not available.
Making toolings cooperative, 50% tooling cost will be undertaken.
more pictures...

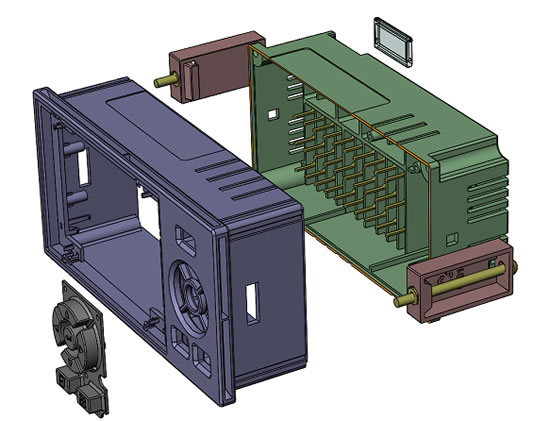

Standard accessories
No.
Part No.
Part Name
Qty
Material
Note
1
8182-1
1
ABS
2
8182-2
1
ABS
3
8182-3
1
Silica gel
4
0001-1
2
Iron
5
