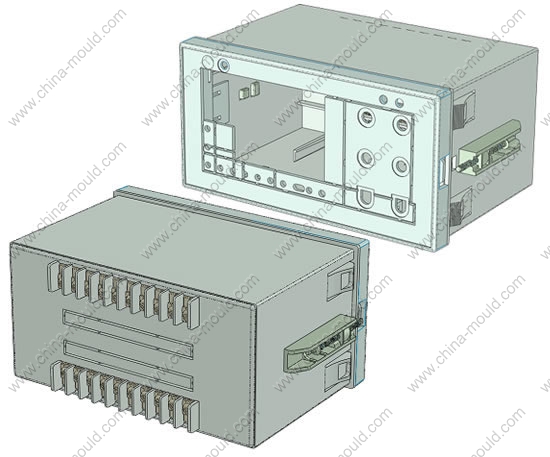

Digital Panel Meter Enclosure
/
80x160
Product code: 8172
[ Print version ]
[ Return ]
Size: 80x156x106 mm
ProtectionClass: no
Battery: no
Windows: no
PDF Drawings:
Download
Note:
Material and color can be customized.
For modification, there will be surcharge.
Drawings from website is just for reference.
Certificates for waterproof and ex-proof are not available.
Making toolings cooperative, 50% tooling cost will be undertaken.
more pictures...
Standard accessories
No.
Part No.
Part Name
Qty
Material
Note
1
8172-1
1
ABS
2
8172-2
1
ABS
3
8172-3
2
ABS
4
8172-4
20
beryllium bronze
5
[ Print version ]
[ Return ]
