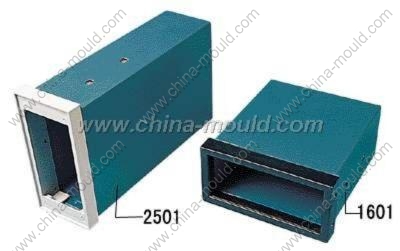

Digital Panel Meter Enclosure
/
80x160
Product code: 1601
[ Print version ]
[ Return ]
Size: 80x160 mm
ProtectionClass: no
Battery: no
Windows: no
Note:
Material and color can be customized.
For modification, there will be surcharge.
Drawings from website is just for reference.
Certificates for waterproof and ex-proof are not available.
Making toolings cooperative, 50% tooling cost will be undertaken.
more pictures...
Standard accessories
No.
Part No.
Part Name
Qty
Material
Note
1
1601
1
Iron
2
810A
1
ABS
3
810G
2
Iron
5
810D
2
Iron
6
810F
2
Iron
7
810C
2
Rubber
8
1604
1
Iron
9
