Index /  Products /  Digital Panel Meter Enclosure /  80x160

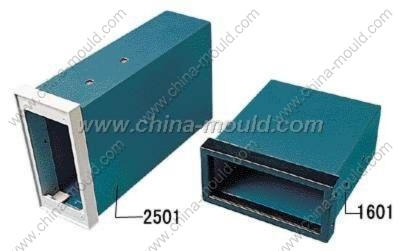

Product code: 2501
[ Print version ] [ Return ]


  • Size: 80x160 mm
  • ProtectionClass: no
  • Battery: no
  • Windows: no
    • Note:
  		• Material and color can be customized.
  		• For modification, there will be surcharge.
  		• Drawings from website is just for reference.
  		• Certificates for waterproof and ex-proof are not available.
  		• Making toolings cooperative, 50% tooling cost will be undertaken.
    more pictures...
    Assembly Parts List
    Serial No.
    Part No.
    Part Name
    Qty
    Material
    Surface Finish
    Remarks
    1 2501  Case  1 Iron   Powder Coating
    2 8116 Panel 1 ABS    Texture Finish
    3  810G Bracket  2  Iron  Zinc Plated
    4  0143 14-Pin Terminal Block   1  ABS Mill Finish
    5  810D  Triangle Board  2  Iron   Zinc Plated
    6  810F  Rigth-Angle Bracket  2  Iron   Zinc Plated
    7  810C  Rubber Ring  2  Rubber
    8  2504  Inner Bracket 1   Iron  Nickel plated
    9
    Optional Parts
    Serial No.
    Part No.
    Part Name
    Qty
    		 Material
    Surface Finish
    Remarks
    1 810A Panel  1 ABS    Texture Finish
    2  8116-1 Panel   1  ABS

       Texture Finish


    3  8134 Panel   1  ABS     Texture Finish
    4  8134-1 Panel   1  ABS     Texture Finish
    5 8126  Panel   1  ABS     Texture Finish
    6  8117  Transparent Cover  1 ABS      Mill Finish
    7  8118  Transparent Cover  1  ABS     Mill Finish
    8  8116-2 Panel   1  ABS     Texture Finish
    9  8116-3 Panel   1 ABS      Texture Finish
    10  8116-4 Panel   1  ABS     Texture Finish
    11  8116-5 Panel   1  ABS     Texture Finish
    12  8116-6 Panel   1  ABS     Texture Finish
    13  8116-7 Panel   1  AS     Texture Finish
    14  8116-8 Panel   1 AS      Texture Finish
    15  8116-9 Panel   1 ABS      Texture Finish
    16
