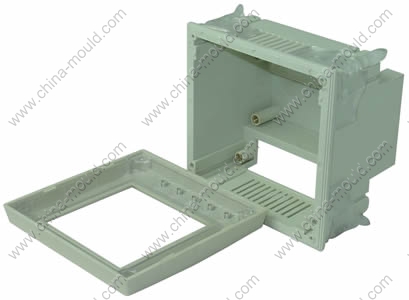

Digital Panel Meter Enclosure
/
96x96
Product code: 9691
[ Print version ]
[ Return ]
Size: 96x96x78 mm
ProtectionClass: no
Battery: no
Windows: no

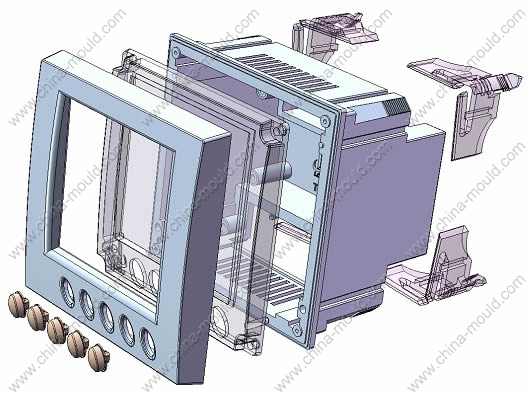

PDF Drawings:
Download
Note:
Material and color can be customized.
For modification, there will be surcharge.
Drawings from website is just for reference.
Certificates for waterproof and ex-proof are not available.
Making toolings cooperative, 50% tooling cost will be undertaken.

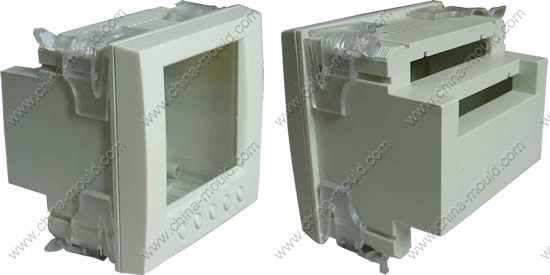

more pictures...
Standard accessories
No.
Part No.
Part Name
Qty
Material
Note
1
9691-1
1
ABS
2
9691-2
1
PC
3
9691-3
1
ABS
4
9679-4
4
PC
5
9679-5
5
ABS
6
PT2.5x8
4
Iron
7
