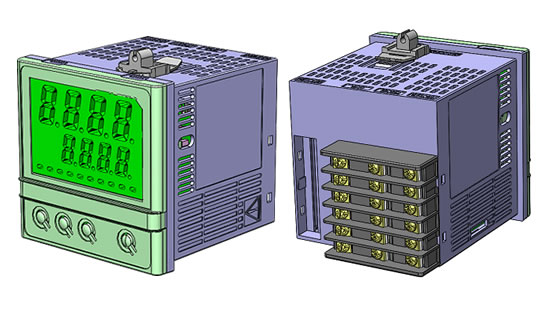

Digital Panel Meter Enclosure
/
72x72
Product code: 7284
[ Print version ]
[ Return ]
Size: 72x72x89 mm
ProtectionClass: no
Battery: no
Windows: no
PDF Drawings:
Download
Note:
Material and color can be customized.
For modification, there will be surcharge.
Drawings from website is just for reference.
Certificates for waterproof and ex-proof are not available.
Making toolings cooperative, 50% tooling cost will be undertaken.
more pictures...

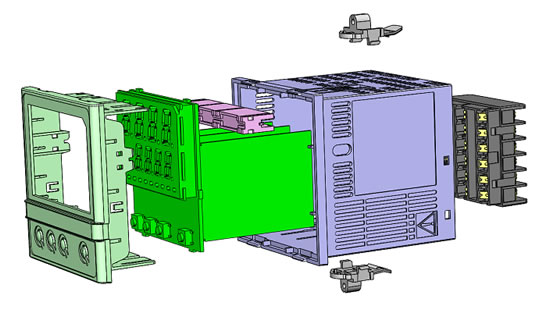

Standard accessories
No.
Part No.
Part Name
Qty
Material
Note
1
7284-1
1
ABS
2
7284-2
1
ABS
3
7284-3
1
ABS
4
4994-3
1
PBT
5
4994-6
2
POM
6
[ Print version ]
[ Return ]
