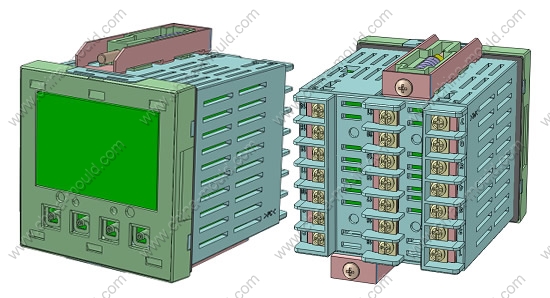

Digital Panel Meter Enclosure
/
72x72
Product code: 7282
[ Print version ]
[ Return ]
Size: 72x72x89 mm
ProtectionClass: no
Battery: no
Windows: no
PDF Drawings:
Download
Note:
Material and color can be customized.
For modification, there will be surcharge.
Drawings from website is just for reference.
Certificates for waterproof and ex-proof are not available.
Making toolings cooperative, 50% tooling cost will be undertaken.
more pictures...

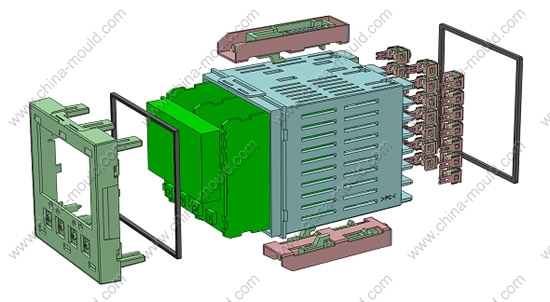

Standard accessories
No.
Part No.
Part Name
Qty
Material
Note
1
7282-1
1
PC
2
7282-2
1
PC
3
7282-3
1
Silica gel
4
7282-4
1
Silica gel
5
4990-3-1
2
PC
6
4990-3-2
2
Iron
7
4990-3-3
2
Spring steel
10
M4x7.4LM
2
Iron
11
M4DP
2
Iron
12
M4x65
2
Iron
13
[ Print version ]
[ Return ]
