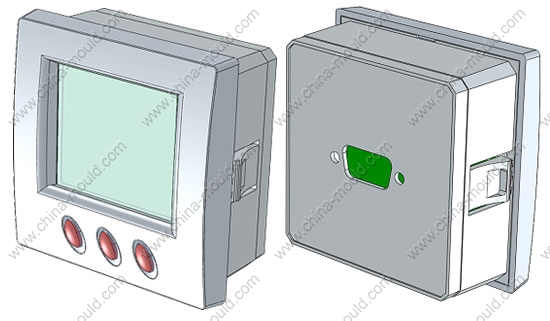

Digital Panel Meter Enclosure
/
72x72
Product code: 7277
[ Print version ]
[ Return ]
Size: 72x72x36 mm
ProtectionClass: no
Battery: no
Windows: no
PDF Drawings:
Download
Note:
Material and color can be customized.
For modification, there will be surcharge.
Drawings from website is just for reference.
Certificates for waterproof and ex-proof are not available.
Making toolings cooperative, 50% tooling cost will be undertaken.
more pictures...

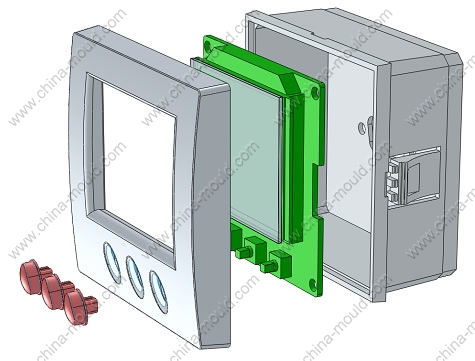

Standard accessories
No.
Part No.
Part Name
Qty
Material
Note
1
7277-1
1
ABS
2
7277-2
1
ABS
3
7277-3
1
PC
4
9679-5
3
ABS
5
This product has the following changes:
Code:
7277A
Code:
7277B
