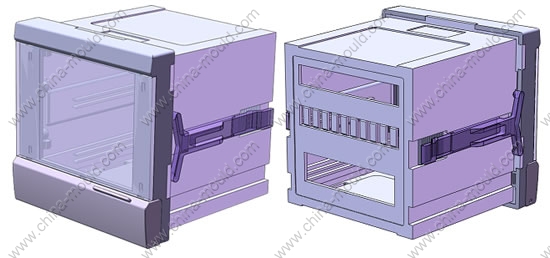

Digital Panel Meter Enclosure
/
72x72
Product code: 7276A
[ Print version ]
[ Return ]
Size: 72x72x73 mm
ProtectionClass: no
Battery: no
Windows: no
PDF Drawings:
Download
Note:
Material and color can be customized.
For modification, there will be surcharge.
Drawings from website is just for reference.
Certificates for waterproof and ex-proof are not available.
Making toolings cooperative, 50% tooling cost will be undertaken.
more pictures...
Standard accessories
No.
Part No.
Part Name
Qty
Material
Note
1
7276-1
1
ABS
2
7276-2A
1
ABS
3
7276-3
1
ABS
4
7276-4
1
PC
5
7276-5
1
Silica gel
6
4869-3
2
PC
7
This product has the following changes:
Code:
7276
Code:
7276B
[ Print version ]
[ Return ]
