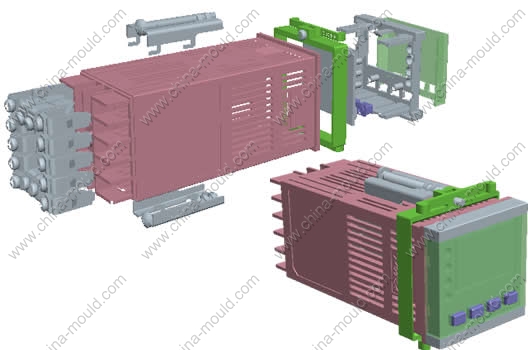

Digital Panel Meter Enclosure
/
48x48
Product code: 4868
[ Print version ]
[ Return ]
Size: 48x48x109 mm
ProtectionClass: no
Battery: no
Windows: no
PDF Drawings:
Download
Note:
Material and color can be customized.
For modification, there will be surcharge.
Drawings from website is just for reference.
Certificates for waterproof and ex-proof are not available.
Making toolings cooperative, 50% tooling cost will be undertaken.
more pictures...
Standard accessories
No.
Part No.
Part Name
Qty
Material
Note
1
4868-1
1
ABS
2
4868-2
1
ABS
3
4868-3
1
PC
4
4868-4
1
Rubber
5
0001-20
2
Iron
6
Optional accessories
No.
Part No.
Part Name
Qty
Material
Note
1
4864-3
1
POM
2
