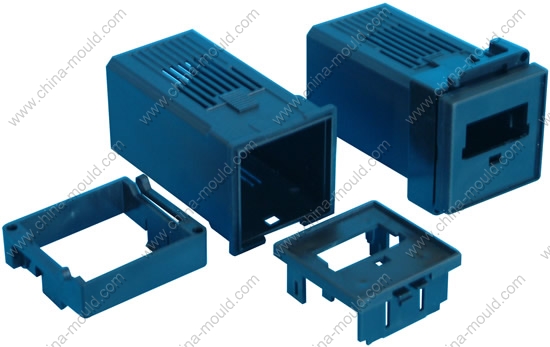

Digital Panel Meter Enclosure
/
48x48
Product code: 4859
[ Print version ]
[ Return ]
Size: 48x48x90 mm
ProtectionClass: no
Battery: no
Windows: no
PDF Drawings:
Download
Note:
Material and color can be customized.
For modification, there will be surcharge.
Drawings from website is just for reference.
Certificates for waterproof and ex-proof are not available.
Making toolings cooperative, 50% tooling cost will be undertaken.
more pictures...
Standard accessories
No.
Part No.
Part Name
Qty
Material
Note
1
4859
1
ABS
2
4859-2
1
ABS
3
4804-2
1
ABS
4
