Al.Die-casting Enclosure
/

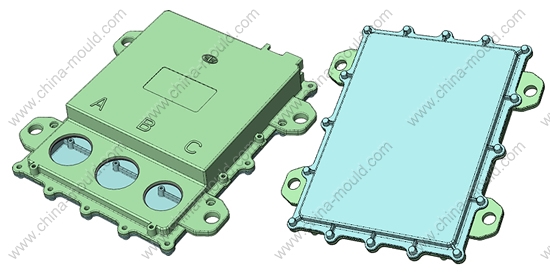

Al Die Casting Part
Product code: 47-12
[ Print version ]
[ Return ]
Size: 300x270x51 mm
ProtectionClass: IP66
Battery: no
Windows: no
Note:
Material and color can be customized.
For modification, there will be surcharge.
Drawings from website is just for reference.
Certificates for waterproof and ex-proof are not available.
Making toolings cooperative, 50% tooling cost will be undertaken.
more pictures...

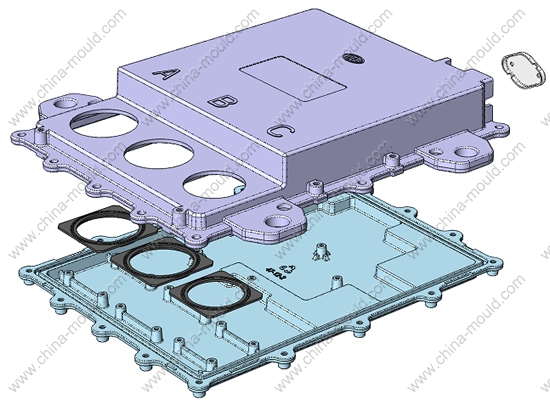

Standard accessories
No.
Part No.
Part Name
Qty
Material
Note
1
47-12-1
1
Aluminum
2
47-12-2
1
Aluminum
3
47-12-3
1
Aluminum
4
47-12-4
2
Silica gel
5
47-12-5
1
Silica gel
6
[ Print version ]
[ Return ]
