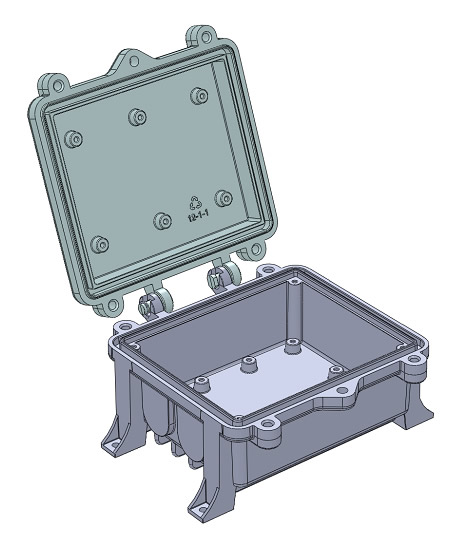

Product code: 12-1
[ Print version ]
[ Return ]
Size: 164x149x76 mm
ProtectionClass: no
Battery: no
Windows: no
PDF Drawings:
Download
Note:
Material and color can be customized.
For modification, there will be surcharge.
Drawings from website is just for reference.
Certificates for waterproof and ex-proof are not available.
Making toolings cooperative, 50% tooling cost will be undertaken.
more pictures...

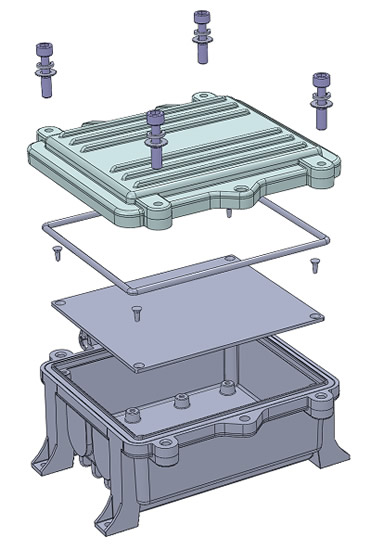

Standard accessories
No.
Part No.
Part Name
Qty
Material
Note
1
12-1-1
1
Aluminum
2
12-1-2
1
Aluminum
3
M6x25LJ
4
Iron
4
MFT4
1
Foam
5
Optional accessories
No.
Part No.
Part Name
Qty
Material
Note
1
12-1-3
1
Aluminum
2
PBT3.5
1
Iron
3
