Metal Enclosure
/

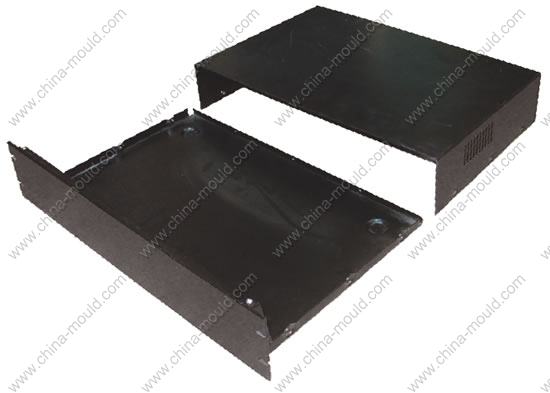

19 inch Cabinet
Product code: 37-2
[ Print version ]
[ Return ]
Size: 482x88 mm
ProtectionClass: no
Battery: no
Windows: no
PDF Drawings:
Download
Note:
Material and color can be customized.
For modification, there will be surcharge.
Drawings from website is just for reference.
Certificates for waterproof and ex-proof are not available.
Making toolings cooperative, 50% tooling cost will be undertaken.
more pictures...
Product Note:

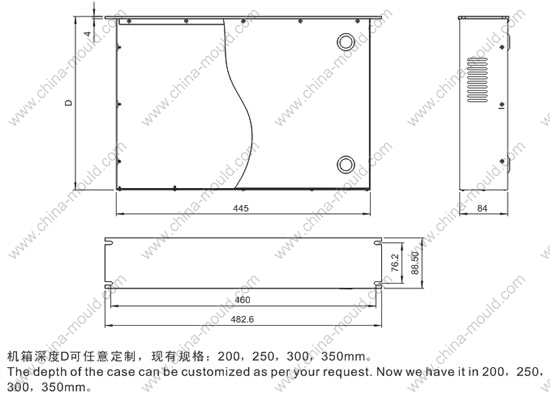

The depth of the case can be customized as per your request. Now we have it in 200,250,300,350mm.
[ Print version ]
[ Return ]
