Metal Enclosure
/

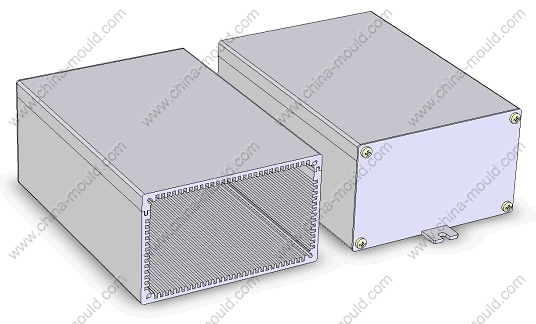

Al.Extrusion Cabinet
Product code: 17-41B
[ Print version ]
[ Return ]

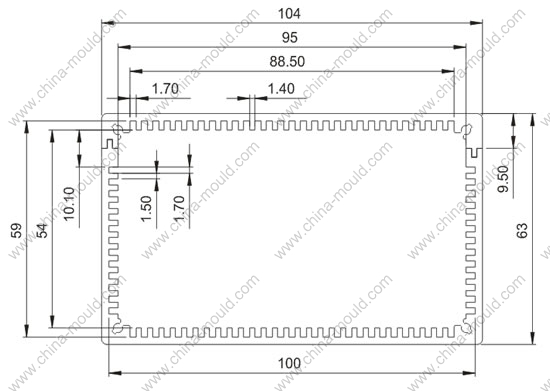

Size: 104x63 mm
ProtectionClass: no
Battery: no
Windows: no
Note:
Material and color can be customized.
For modification, there will be surcharge.
Drawings from website is just for reference.
Certificates for waterproof and ex-proof are not available.
Making toolings cooperative, 50% tooling cost will be undertaken.
more pictures...
Assembly Parts List
Serial No.
Part No.
Part Name
Qty
Material
Surface Finish
Remarks
1
17-46A-1
Extruder
1
Al.
Oxidation
2
17-36A-1
Extruder
1
Al.
Oxidation
3
17-41B-1
Front & Rear Aluminum Panel
2
Al.
Oxidation
4
M3*8 Cap Screw
8
Steel
5
Optional Parts
Serial No.
Part No.
Part Name
Qty
Material
Surface Finish
Remarks
1
2
