Metal Enclosure
/
Iron Cabinet
Product code: 16-75
[ Print version ]
[ Return ]
Size: 186x141x32 mm
ProtectionClass: no
Battery: no
Windows: no
PDF Drawings:
Download
Note:
Material and color can be customized.
For modification, there will be surcharge.
Drawings from website is just for reference.
Certificates for waterproof and ex-proof are not available.
Making toolings cooperative, 50% tooling cost will be undertaken.
more pictures...

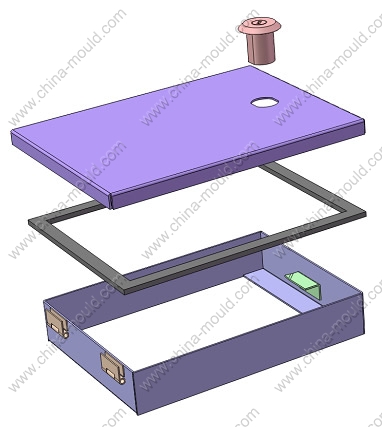

Standard accessories
No.
Part No.
Part Name
Qty
Material
Note
1
16-75-1
1
Iron
2
16-75-2
1
Iron
3
16-75-3
1
Iron
4
16-75-4
1
sponge
5
suo403
1
Iron
6
HEYE
2
Iron
7
[ Print version ]
[ Return ]
