Plastic Enclosure
/

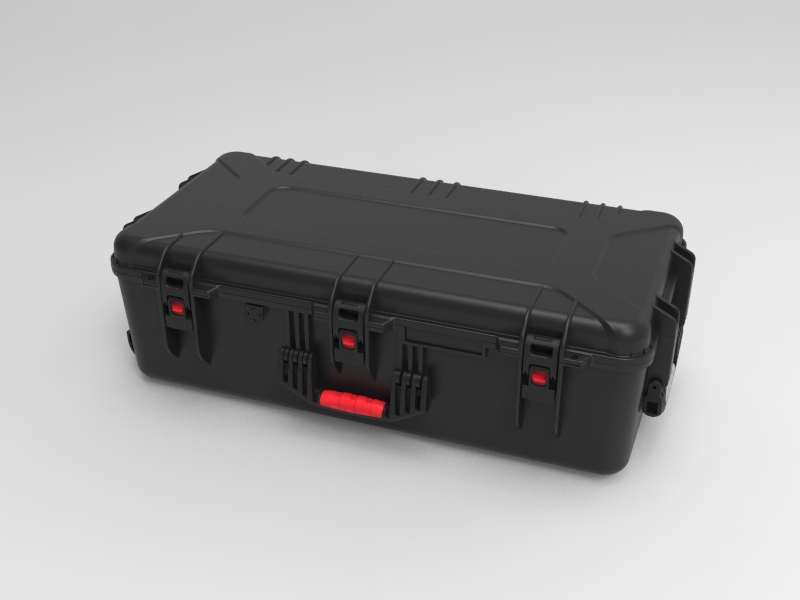

Advanced protective cases
Product code: 46-1680
[ Print version ]
[ Return ]
Size: 900x400x267 mm
ProtectionClass: no
Battery: no
Windows: no
Note:
Material and color can be customized.
For modification, there will be surcharge.
Drawings from website is just for reference.
Certificates for waterproof and ex-proof are not available.
Making toolings cooperative, 50% tooling cost will be undertaken.
more pictures...
Standard accessories
No.
Part No.
Part Name
Qty
Material
Note
1
46-1680-1
1
PP
2
46-1680-2
1
PP
3
28-290
3
PA
4
28-289
1
ABS
5
46-1510-5
2
PP+TPR
6
46-1610-4
2
PP
7
46-1510-9
4
ABS+PU
8
46-1510-10
8
ABS
9
608ZZ
8
304 Stainless steel
10
46-1510-8
4
304 Stainless steel
11
xiao4x62
3
Stainless Steel
12
xiao4x108
3
Stainless Steel
13
xiao5.5x32
6
Stainless Steel
14
