Plastic Enclosure
/

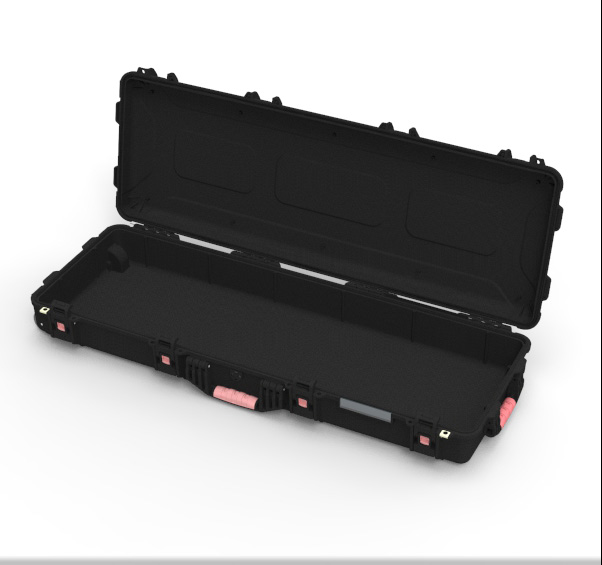

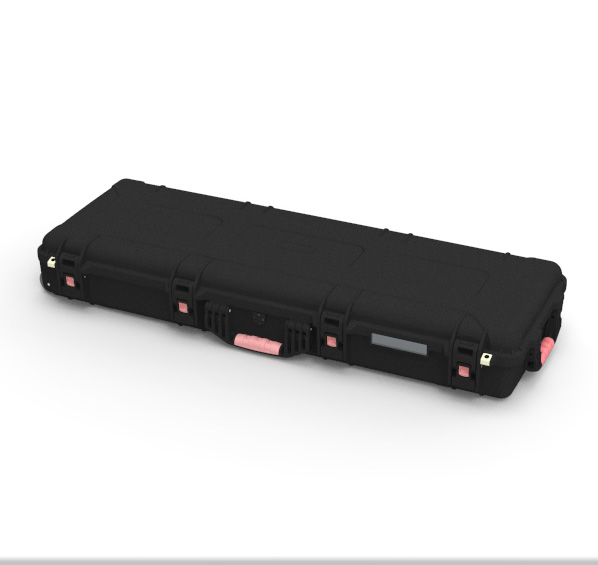

Advanced protective cases
Product code: 46-1720
[ Print version ]
[ Return ]
Size: 1129x415x163 mm
ProtectionClass: IP67
Battery: no
Windows: no
PDF Drawings:
Download
Note:
Material and color can be customized.
For modification, there will be surcharge.
Drawings from website is just for reference.
Certificates for waterproof and ex-proof are not available.
Making toolings cooperative, 50% tooling cost will be undertaken.
more pictures...
Standard accessories
No.
Part No.
Part Name
Qty
Material
Note
1
46-1720-1
1
PP
2
46-1720-2
1
PP
3
46-1510-8
4
304 Stainless steel
4
46-1456-3
2
PP+TPR
5
46-1510-9
2
ABS+PU
6
46-1510-10
2
ABS
8
28-290
4
PA
9
46-1510-5
1
PP+TPR
10
46-1510-7
1
PC
11
28-289
1
ABS
12
28-289-1
1
ABS
14
xiao5.5x43
4
Stainless Steel
15
xiao6x43
2
Stainless Steel
16
xiao4x65
4
Stainless Steel
17
