Plastic Enclosure
/
Plastic Equipment Case

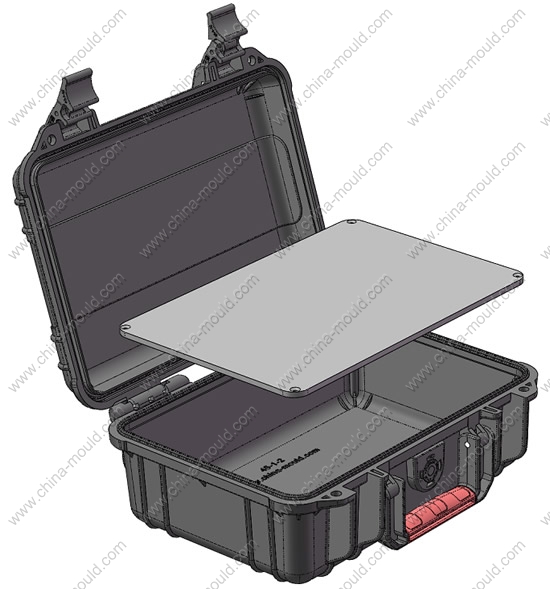

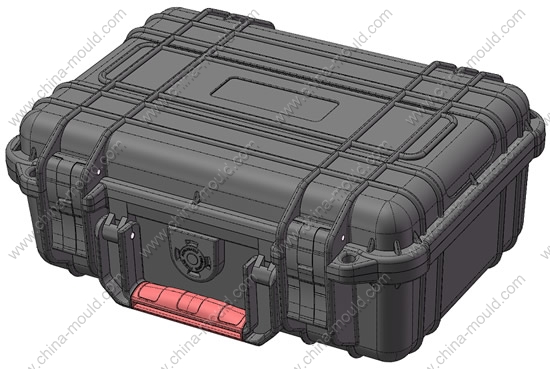

Product code: 45-1
[ Print version ]
[ Return ]
Size: 263x206x106 mm
ProtectionClass: IP67
Battery: no
Windows: no
PDF Drawings:
Download
Note:
Material and color can be customized.
For modification, there will be surcharge.
Drawings from website is just for reference.
Certificates for waterproof and ex-proof are not available.
Making toolings cooperative, 50% tooling cost will be undertaken.

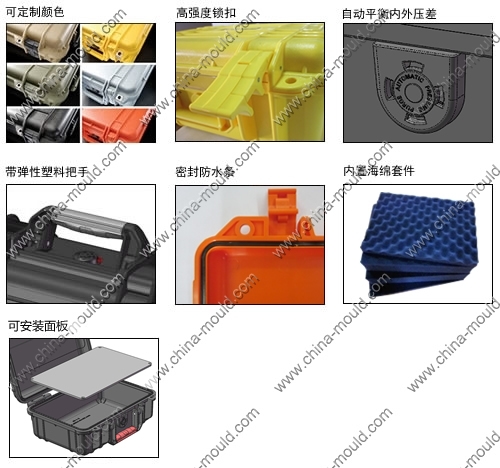

more pictures...
Standard accessories
No.
Part No.
Part Name
Qty
Material
Note
1
45-1-1
1
ABS
2
45-1-2
1
ABS
3
45-1-3C
1
ABS+TPR
4
45-1-11
2
ABS
5
45-1-12
2
ABS
6
28-289
1
ABS
7
xiao3x23
2
Stainless Steel
8
xiao3x33
2
Stainless Steel
9
xiao3x62
2
Stainless Steel
10
xiao4x20
2
Stainless Steel
11
Optional accessories
No.
Part No.
Part Name
Qty
Material
Note
1
45-1-6
1
ABS
2
HM240x160x30
1
sponge
3
HM240x160x50
1
sponge
4
HM240x160x15
1
sponge
5
