Plastic Enclosure
/

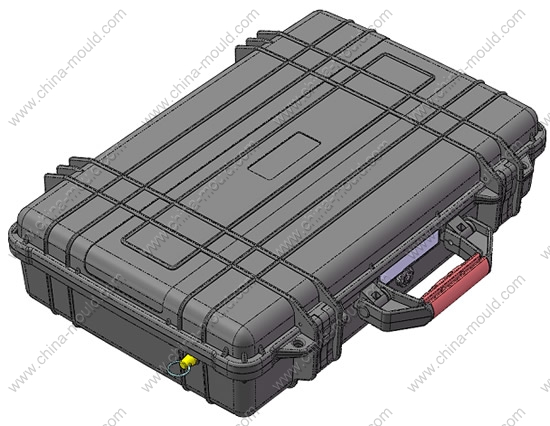

Plastic Equipment Case
Product code: 45-35
[ Print version ]
[ Return ]
Size: 492x353x122 mm
ProtectionClass: IP65
Battery: no
Windows: no
PDF Drawings:
Download
Note:
Material and color can be customized.
For modification, there will be surcharge.
Drawings from website is just for reference.
Certificates for waterproof and ex-proof are not available.
Making toolings cooperative, 50% tooling cost will be undertaken.
more pictures...
Standard accessories
No.
Part No.
Part Name
Qty
Material
Note
1
45-35-1
1
ABS
2
45-35-2
1
ABS
3
45-5-3
1
ABS+TPR
4
45-5-5
1
ABS
5
45-5-11
2
ABS
6
45-5-12
2
ABS
7
45-15-3
1
PC
8
28-289
1
ABS
9
45BQ
1
Paper
10
xiao3x28
2
Stainless Steel
11
xiao3x39
2
Stainless Steel
12
xiao4x83
2
Stainless Steel
13
xiao5.5x32
2
Stainless Steel
14
[ Print version ]
[ Return ]
