Index /  Products /  Plastic Enclosure /  Plastic Equipment Case

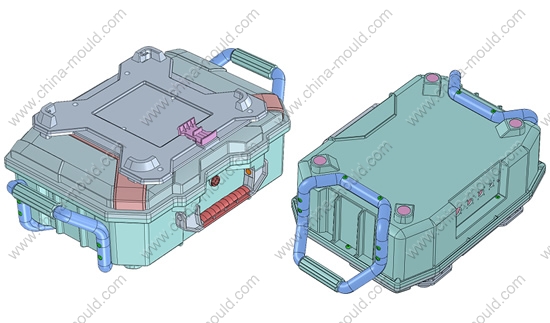

Product code: 45-33
[ Print version ] [ Return ]


  • Size: 673x395x227 mm
  • ProtectionClass: no
  • Battery: no
  • Windows: no
  • PDF Drawings:  Download
    		•
    Note:
  		• Material and color can be customized.
  		• For modification, there will be surcharge.
  		• Drawings from website is just for reference.
  		• Certificates for waterproof and ex-proof are not available.
  		• Making toolings cooperative, 50% tooling cost will be undertaken.
    more pictures...

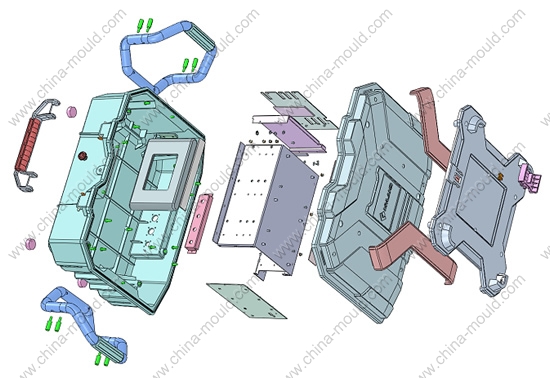

    Standard accessories
    No. Part No. Part Name Qty Material Note
    1 45-33-1 1 ABS
    2 45-33-2 1 ABS
    3 45-33-3 1 ABS
    4 45-33-4 1 ABS
    5 45-33-5-1 1 ABS
    6 45-33-5-2 1 ABS
    7 45-33-5-3 2 Spring steel
    8 45-33-6-1 1 Iron
    9 45-33-6-2 1 Iron
    10 45-33-6-3 1 Iron
    11 45-33-6-4 1 Iron
    12 45-33-6-5 1 Aluminum
    13 45-33-7 4 Rubber
    14 45-33-9 2 304 Stainless steel
    15 45-33-10 1 Iron
    16 45-33-11 2 ABS
    17 45-33-12 2 ABS
    18 45-31-8 1 Rubber
    19 45-9-3 1 ABS+TPR
    20 45-5-5 2 ABS
    21 28-166 1 ABS
    22 xiao5.5x43 2 Stainless Steel
    23 95x50x3PM 1 sponge
    24 80x10x3PM 1 sponge
    25 130x110x3PM 1 sponge
    26 190x25x3PM 1 sponge
    27 M3x6H 11 Iron
    28 M3x12NLJ 18 Iron
    29 M3x2HLM 18 Iron
    30 M5X4LM 8 Iron
    31 M4x12 12 Iron
    32 M4x14H 10 Iron
    33 PT4x14LJ 8 Iron
    34 M5x35 12 Iron
    35 M3x6x3 6 Brass
    36 PT3x8H 24 Iron
    37 OXQ7X1.9 8 Rubber
    38
