Plastic Enclosure
/
Plastic Equipment Case
Product code: 45-14
[ Print version ]
[ Return ]
Size: 473x386x151 mm
ProtectionClass: IP67
Battery: no
Windows: no
PDF Drawings:
Download
Note:
Material and color can be customized.
For modification, there will be surcharge.
Drawings from website is just for reference.
Certificates for waterproof and ex-proof are not available.
Making toolings cooperative, 50% tooling cost will be undertaken.

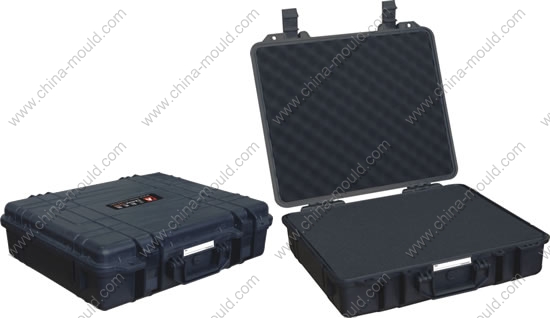

more pictures...
Standard accessories
No.
Part No.
Part Name
Qty
Material
Note
1
45-8-1
1
ABS
2
45-14-2
1
ABS
3
45-5-3
1
ABS+TPR
4
45-5-5
2
ABS
5
45-8-7
2
ABS
6
45-8-8
2
ABS
7
28-289
1
ABS
8
xiao3x39
2
Stainless Steel
9
xiao4x51
2
Stainless Steel
10
xiao4x95
2
Stainless Steel
11
xiao5.5x32
2
Stainless Steel
12
45-15-3
1
PC
13
45BQ
1
Paper
14

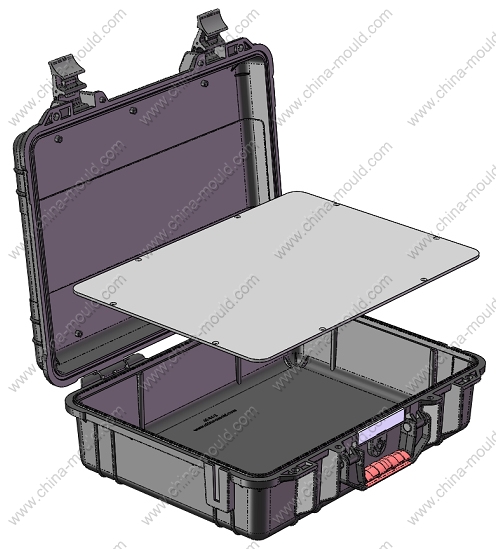

Optional accessories
No.
Part No.
Part Name
Qty
Material
Note
1
45-14-3
1
Aluminum
2
45-3-9
2
Iron
3
45-3-10
2
304 Stainless steel
4
45-3-11
1
sacking
5
