Plastic Enclosure
/

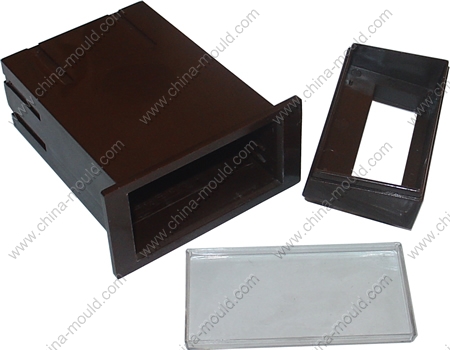

Annunciator Enclosure
Product code: 30-8Z
[ Print version ]
[ Return ]
Old code: 48-1
Size: 80x40x121 mm
ProtectionClass: no
Battery: no
Windows: no
PDF Drawings:
Download
Note:
Material and color can be customized.
For modification, there will be surcharge.
Drawings from website is just for reference.
Certificates for waterproof and ex-proof are not available.
Making toolings cooperative, 50% tooling cost will be undertaken.
more pictures...
Standard accessories
No.
Part No.
Part Name
Qty
Material
Note
1
48
1
ABS
2
48-1
1
ABS
3
48-3
1
PC
4
48-5
2
ABS
5
