Plastic Enclosure
/

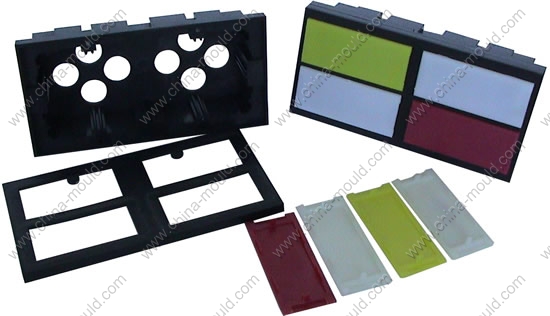

Annunciator Enclosure
Product code: 30-6
[ Print version ]
[ Return ]
Old code: 8155
Size: 80x160x49 mm
ProtectionClass: no
Battery: no
Windows: no
PDF Drawings:
Download
Note:
Material and color can be customized.
For modification, there will be surcharge.
Drawings from website is just for reference.
Certificates for waterproof and ex-proof are not available.
Making toolings cooperative, 50% tooling cost will be undertaken.
more pictures...
Standard accessories
No.
Part No.
Part Name
Qty
Material
Note
1
30-6
1
ABS
2
8127
1
ABS
3
8127-1
4
ABS
4
[ Print version ]
[ Return ]
