Plastic Enclosure
/
Annunciator Enclosure
Product code: 30-10ZL
[ Print version ]
[ Return ]
Size: 80x40 mm
ProtectionClass: no
Battery: no
Windows: no

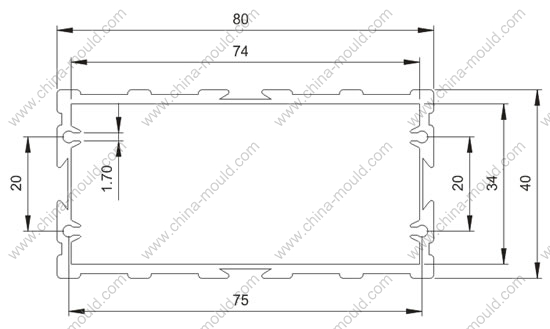

PDF Drawings:
Download
Note:
Material and color can be customized.
For modification, there will be surcharge.
Drawings from website is just for reference.
Certificates for waterproof and ex-proof are not available.
Making toolings cooperative, 50% tooling cost will be undertaken.

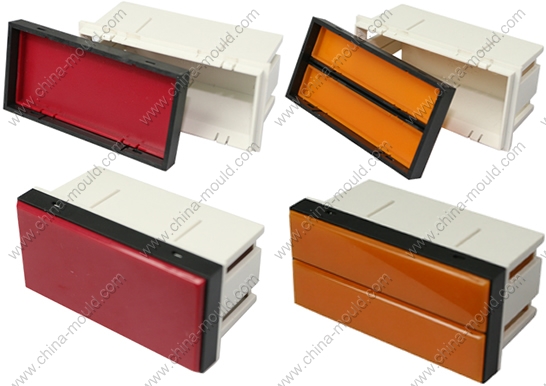

more pictures...
Standard accessories
No.
Part No.
Part Name
Qty
Material
Note
1
30-10ZL-1
1
ABS
2
30-10ZL-2
1
ABS
3
30-10ZL-3
1
Aluminum
4
30-10ZL-4
2
PC
5
Optional accessories
No.
Part No.
Part Name
Qty
Material
Note
1
30-10ZL-5
1
PC
2
30-10ZL-6
2
Aluminum
3
