Plastic Enclosure
/

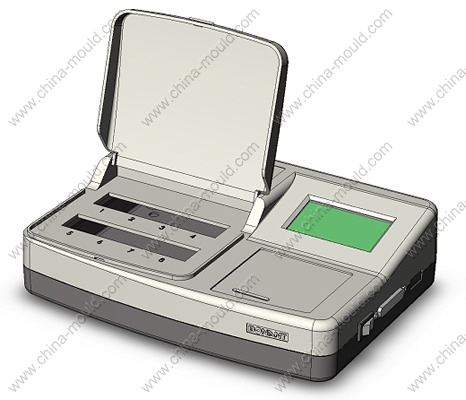

Non-standard Meter Enclosure
Product code: 28-88
[ Print version ]
[ Return ]
Size: 265x195x68 mm
ProtectionClass: no
Battery: no
Windows: no
PDF Drawings:
Download
Note:
Material and color can be customized.
For modification, there will be surcharge.
Drawings from website is just for reference.
Certificates for waterproof and ex-proof are not available.
Making toolings cooperative, 50% tooling cost will be undertaken.
more pictures...
Standard accessories
No.
Part No.
Part Name
Qty
Material
Note
1
28-88-1
1
ABS
2
28-88-2
1
ABS
3
28-88-3
1
ABS
4
28-88-4
1
PC
5
M4x20
5
Iron
6
This product has the following changes:
Code:
28-37
