Plastic Enclosure
/
Non-standard Meter Enclosure
Product code: 28-396
[ Print version ]
[ Return ]
Size: 203x150x75 mm
ProtectionClass: no
Battery: no
Windows: no
PDF Drawings:
Download
Note:
Material and color can be customized.
For modification, there will be surcharge.
Drawings from website is just for reference.
Certificates for waterproof and ex-proof are not available.
Making toolings cooperative, 50% tooling cost will be undertaken.
more pictures...

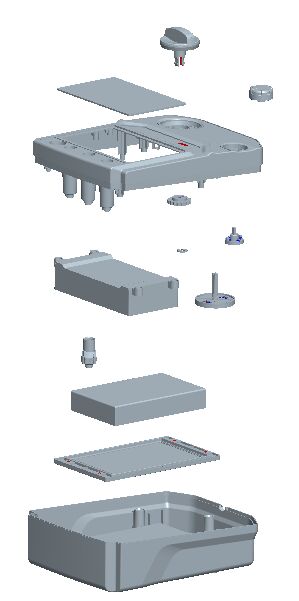

Standard accessories
No.
Part No.
Part Name
Qty
Material
Note
1
28-396-1
1
PC+ABS
2
28-396-2
1
PC+ABS
3
28-396-3
1
PC-V0
4
28-396-4
1
PC-V0
5
28-396-5
1
Nylon66
6
28-396-6
1
Nylon66
7
28-396-7
1
PC
8
28-396-8
1
PC+ABS
9
28-396-9
1
PC+ABS
10
28-396-10
1
PC+ABS
11
28-396-11
1
Nylon66
12
28-396-12
1
Nylon66
13
28-396-13
1
PC
14
28-396-14
2
Phosphor bronze
15
28-396-15
1
Spring steel
16
28-396-16
4
Brass
17
28-396-17
1
304 Stainless steel
18
