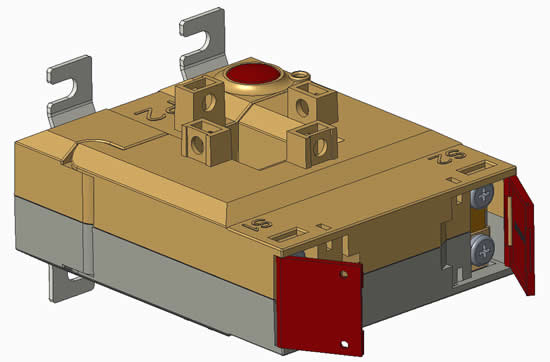

Product code: 28-345(New Product)
[ Print version ] [ Return ]


  • Size: 110x89x40 mm
  • ProtectionClass: IP65
  • Battery: no
  • Windows: no
  • PDF Drawings:  Download
    		•
    Note:
  		• Material and color can be customized.
  		• For modification, there will be surcharge.
  		• Drawings from website is just for reference.
  		• Certificates for waterproof and ex-proof are not available.
  		• Making toolings cooperative, 50% tooling cost will be undertaken.
    more pictures...

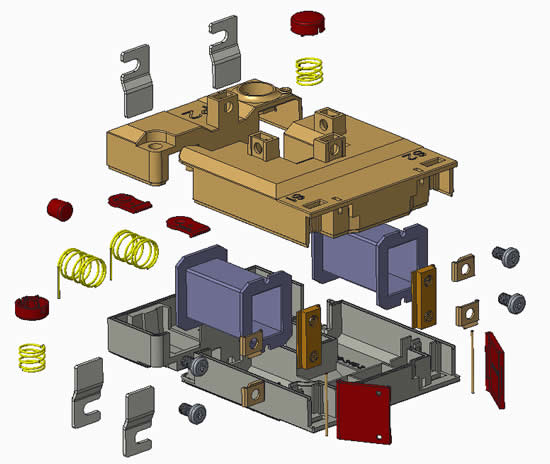

    Standard accessories
    No. Part No. Part Name Qty Material Note
    1 28-345-1 1 ABS
    2 28-345-2 1 ABS
    3 28-345-3 1 ABS
    4 28-345-4 1 ABS
    5 28-345-5 2 ABS
    6 28-345-6 2 ABS
    7 28-345-7 2 ABS
    8 28-345-8 4 ABS
    9 28-345-9 2 ABS
    10 28-345-10 4 Iron
    11 28-345-11 4 Iron
    12 28-345-12 2 Brass
    13 28-345-13 2 304 Stainless steel
    14 28-345-14 2 Spring steel
    15 28-345-15 2 Spring steel
    16 M5x8 4 Iron
    17 M5x40 4 Iron
    19 ST2.5*8 2 Iron
    20 M3x48 1 Iron
    21
