Plastic Enclosure
/

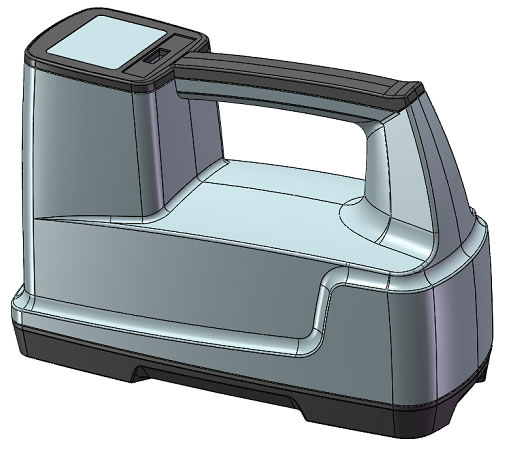

Non-standard Meter Enclosure
Product code: 28-324
[ Print version ]
[ Return ]
Size: 400x169x269 mm
ProtectionClass: no
Battery: no
Windows: no
Note:
Material and color can be customized.
For modification, there will be surcharge.
Drawings from website is just for reference.
Certificates for waterproof and ex-proof are not available.
Making toolings cooperative, 50% tooling cost will be undertaken.
more pictures...
Standard accessories
No.
Part No.
Part Name
Qty
Material
Note
1
28-324-1
1
ABS
2
28-324-2
1
ABS
3
28-192-1
1
PC
4
28-192-2
1
PC
5
28-192-5
1
PC
6
28-192-6-1
1
Iron
7
28-192-6-2
1
Iron
8
28-192-7
1
Silica gel
9
28-192-8
1
Silica gel
10
28-192-9
1
Silica gel
11
28-192-10
1
Silica gel
12
PT3.5x10
35
Iron
13
M2.5x6
3
Iron
14
