Plastic Enclosure
/
Non-standard Meter Enclosure
Product code: 28-253
[ Print version ]
[ Return ]
Size: 257x225x189 mm
ProtectionClass: no
Battery: no
Windows: no
PDF Drawings:
Download
Note:
Material and color can be customized.
For modification, there will be surcharge.
Drawings from website is just for reference.
Certificates for waterproof and ex-proof are not available.
Making toolings cooperative, 50% tooling cost will be undertaken.

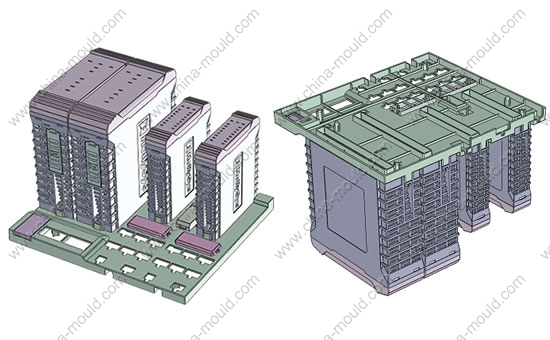

more pictures...

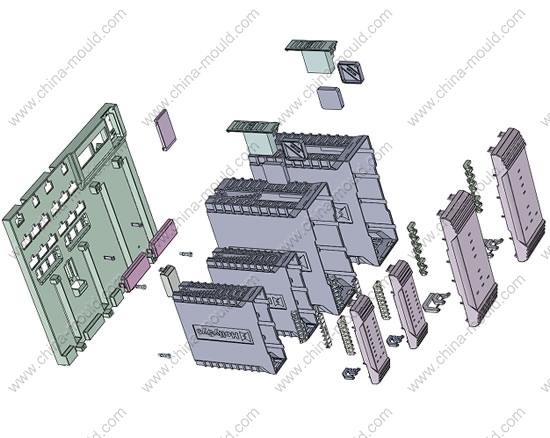

Standard accessories
No.
Part No.
Part Name
Qty
Material
Note
1
KC029
1
PC+ABS
2
KC030
1
PC
3
KC031
1
PC+ABS
4
KC032
2
PC+ABS
5
KC033
2
PP
6
KC020
2
PC+ABS
7
KC021
2
PC
8
KC022
2
PC
9
KC023
2
PC+ABS
10
KC009
2
PC+ABS
11
KC010
2
PC
12
KC011
2
PC
13
KC012
2
PC
14
KC013
2
ABS
15
KC019
2
PC+ABS
16
M4x12D
4
304 Stainless steel
17
M3x12D
4
304 Stainless steel
18
TH4x10.5
4
Spring steel
19
TH5x10.5
4
Spring steel
20
KC024
2
PC+ABS
21
KC025
2
PC+ABS
22
KC026
2
PC+ABS
23
