Plastic Enclosure
/
Display Enclosure

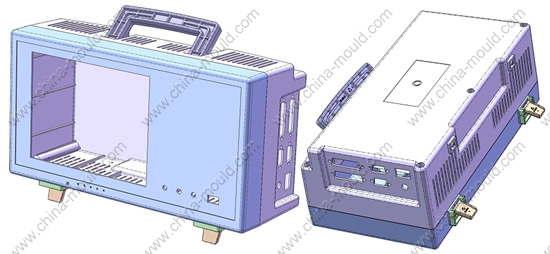

Product code: 27-58
[ Print version ]
[ Return ]
Size: 345x194x127 mm
ProtectionClass: no
Battery: no
Windows: 8.6",173.5x132mm
PDF Drawings:
Download
Note:
Material and color can be customized.
For modification, there will be surcharge.
Drawings from website is just for reference.
Certificates for waterproof and ex-proof are not available.
Making toolings cooperative, 50% tooling cost will be undertaken.
more pictures...

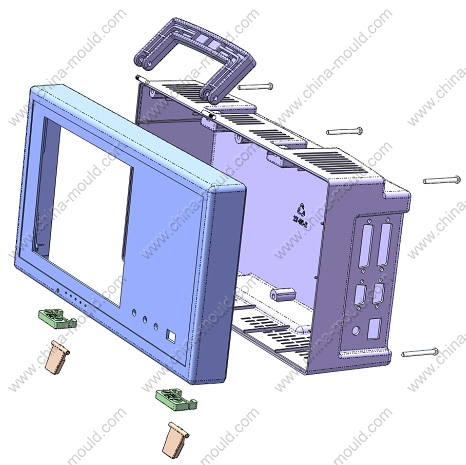

Standard accessories
No.
Part No.
Part Name
Qty
Material
Note
1
27-58-1
1
ABS
2
27-58-2
1
ABS
3
27-58-3
1
ABS
4
27-58-4
2
ABS
5
27-58-5
2
ABS
6
xiao4x20
2
Stainless Steel
7
M4x35
6
Iron
8
