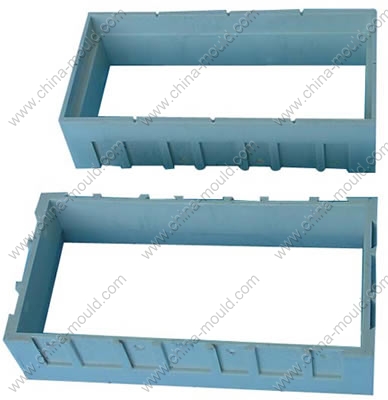

Product code: 25-13
[ Print version ]
[ Return ]
Size: 50x100 mm
ProtectionClass: no
Battery: no
Windows: no
PDF Drawings:
Download
Note:
Material and color can be customized.
For modification, there will be surcharge.
Drawings from website is just for reference.
Certificates for waterproof and ex-proof are not available.
Making toolings cooperative, 50% tooling cost will be undertaken.
more pictures...
Assembly Parts List
Serial No.
Part No.
Part Name
Amount
Material
Surface Finish
Remarks
1
25-13
Module of
50*100
1
ABS
Mill Finish
2
Optional Parts
Serial No.
Part No.
Part Name
Amount
Material
Surface Finish
Remarks
1
2
