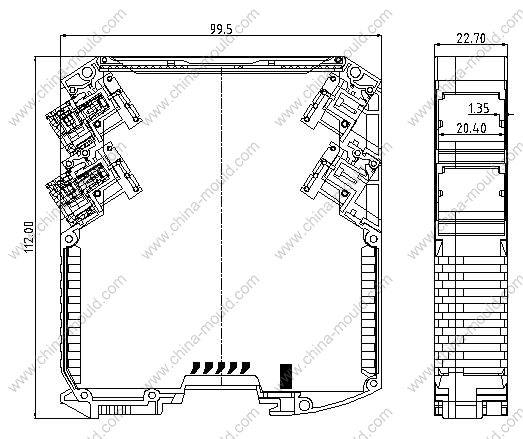

| Size:
90x23x111 mm
|
| ProtectionClass:
no
|
| Battery:
no
|
| Windows:
no
|
|
|
|
|
| Note: |
|
Material and color can be customized. |
|
For modification, there will be surcharge. |
|
Drawings from website is just for reference. |
|
Certificates for waterproof and ex-proof are not available. |
|
Making toolings cooperative, 50% tooling cost will be undertaken. |
|
|
|
|
|
| more pictures... |
|
|
|
|
Assembly Parts List |
|
Serial No. |
|
|
|
Material |
|
Remarks |
| 1 |
SH801-22.5UP |
Top Cover |
1 |
PA66 |
|
|
| 2 |
SH801-22.5DOWN |
Base |
1 |
PA66 |
|
|
| 3 |
SH801-22.5PC |

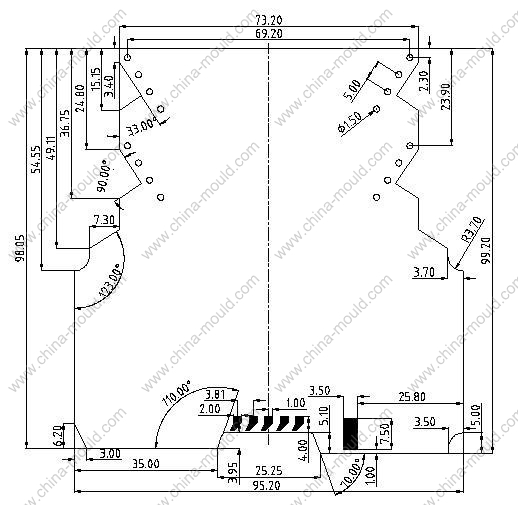

PC Board |
1 |
PC |
|
|
| 4 |
SH801-22.5 |
Front Panel |
1 |
PA66 |
|
|
| 5 |
SH801-22.5 |
Side Panel |
4 |
PA66 |
|
|
| 6 |
SH801-22.5 |
Rubber Stopper |
1 |
Rubber |
|
|
| 7 |
SH801-22.5 |
Bracket Buckel |
1 |
Iron |
Nickel Plated |
|
| 8 |
|
|
|
|
|
|
|
Optional Parts |
|
Serial No. |
|
|
|
Material |
|
Remarks |
| 1 |
SH236-5.0-4P |
Terminal Block |
4 |
PA66 |
|
|
| 2 |
SH236V-5.0-4P |
Terminal Block |
4 |
PA66 |
|
| |
|
|
|
|
| |
|
|
