Plastic Enclosure
/
Standard Din-rail Enclosure
Product code: 23-211
[ Print version ]
[ Return ]
Size:
ProtectionClass: no
Battery: no
Windows: no
Note:
Material and color can be customized.
For modification, there will be surcharge.
Drawings from website is just for reference.
Certificates for waterproof and ex-proof are not available.
Making toolings cooperative, 50% tooling cost will be undertaken.
more pictures...

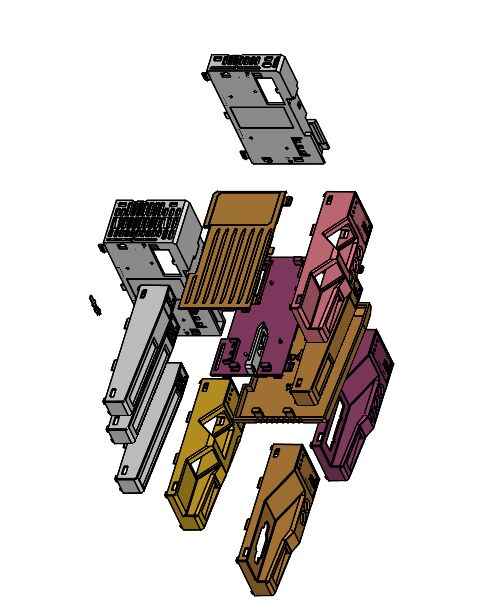

Standard accessories
No.
Part No.
Part Name
Qty
Material
Note
1
23-211-1A
1
PC
2
23-211-2
1
PC+ABS
3
23-211-3
1
PC+ABS
4
23-211-4
1
POM
5
23-211-5
2
POM
6
23-211-6
1
PC+ABS
7
23-211-7
1
PC+ABS
8
23-211-8A
1
PC
9
23-211-9
1
PC+ABS
10
23-211-10
1
Brass
11
23-211-11
1
beryllium bronze
12
23-211-12
1
PC+ABS
13
[ Print version ]
[ Return ]
