Plastic Enclosure
/
Industrial Control Enclosure

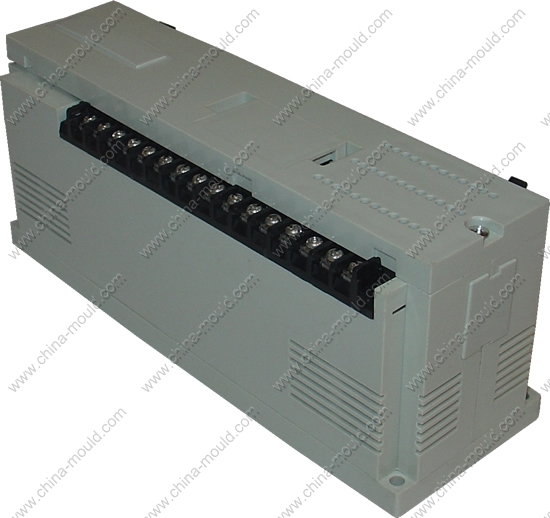

Product code: 22-12
[ Print version ]
[ Return ]
Old code: PC13
Size: 250x80x100 mm
ProtectionClass: no
Battery: no
Windows: no
PDF Drawings:
Download
Note:
Material and color can be customized.
For modification, there will be surcharge.
Drawings from website is just for reference.
Certificates for waterproof and ex-proof are not available.
Making toolings cooperative, 50% tooling cost will be undertaken.
more pictures...

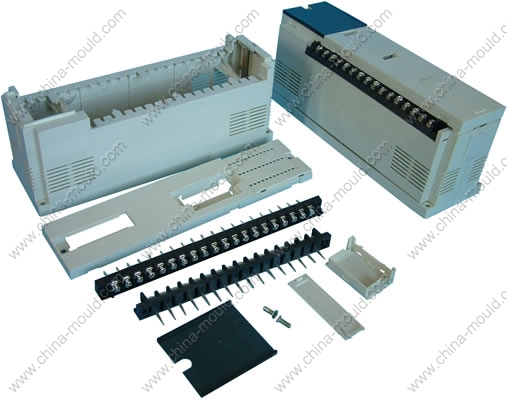

Standard accessories
No.
Part No.
Part Name
Qty
Material
Note
1
22-12-1
1
ABS
2
22-12-2
1
ABS
3
22-12-3
1
ABS
4
22-12-4
1
ABS
5
22-12-5
2
Iron
6
22-12-6
6
ABS
7
22-8-7
2
ABS
8
22-8-8
1
ABS
9
22-8-10
1
ABS
10
22-12-11
1
ABS
11
22-12-16
1
ABS
12
22-12-20
1
ABS
13
M4x10CT
4
Iron
14
