Plastic Enclosure
/
Industrial Control Enclosure

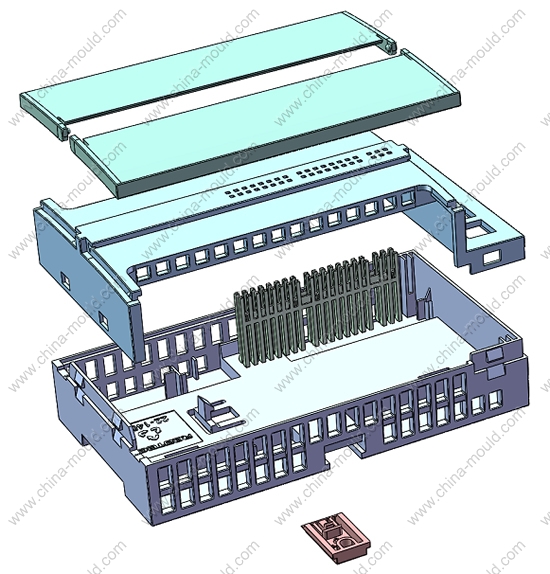

Product code: 22-145
[ Print version ]
[ Return ]
Size: 142x80x51 mm
ProtectionClass: no
Battery: no
Windows: no
PDF Drawings:
Download
Note:
Material and color can be customized.
For modification, there will be surcharge.
Drawings from website is just for reference.
Certificates for waterproof and ex-proof are not available.
Making toolings cooperative, 50% tooling cost will be undertaken.
more pictures...
Standard accessories
No.
Part No.
Part Name
Qty
Material
Note
1
22-145-1A
1
PBT+GF10 FR
2
22-145-2
1
PBT+GF10 FR
3
22-145-3
1
POM
4
22-145-4
1
POM
5
22-145-5
2
PBT+GF10 FR
6
22-145-6
2
PC
7
