Plastic Enclosure
/

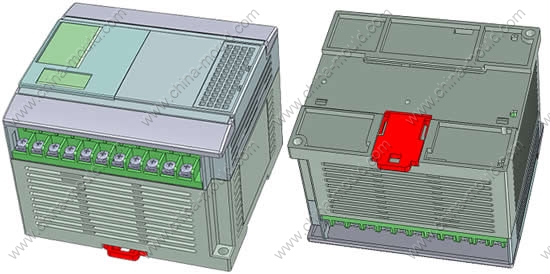

Industrial Control Enclosure
Product code: 22-104
[ Print version ]
[ Return ]
Size: 100x90x75 mm
ProtectionClass: no
Battery: no
Windows: no
PDF Drawings:
Download
Note:
Material and color can be customized.
For modification, there will be surcharge.
Drawings from website is just for reference.
Certificates for waterproof and ex-proof are not available.
Making toolings cooperative, 50% tooling cost will be undertaken.
more pictures...

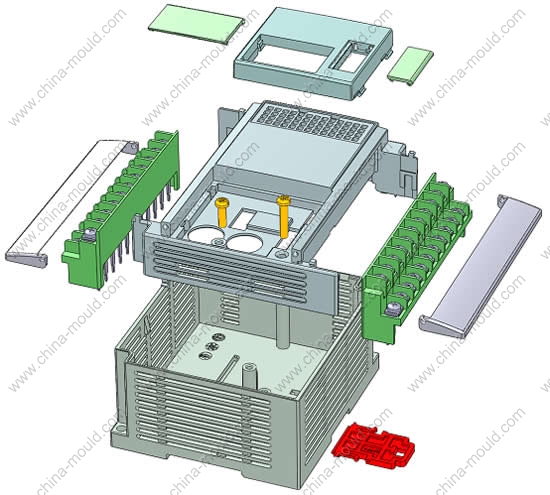

Standard accessories
No.
Part No.
Part Name
Qty
Material
Note
1
22-66-2
1
ABS
2
22-104-1
1
ABS
3
22-104-2
1
ABS
4
22-104-3
1
ABS
5
22-104-4
1
ABS
6
22-66-4
2
PC
7
22-66-6
1
POM
8
22-66-7
2
ABS
9
PT3x16
1
Iron
10
PT3x10
1
Iron
11
